型号 | PHU | 80-170 | 200-70 | 500-30 | 750-20 | 1000-15 | 1500-10 |
额定输出电压P
额定输出电流(2
额定输出功率
输出功率比 | V | 80 | 200 | 500 | 750 | 1000 | 1500 |
A | 170 | 70 | 30 | 20 | 15 | 10 |
W | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
一 | 2.72 | 2.8 | 3 | 3 | 3 | 3 |
定电压模式 |
电源调整率(3[0.01%of Vo_rated]
负载调整率14[0.02%of Vo_rated] | mV | 8 | 20 | 50 | 75 | 100 | 150 |
mV | 16 | 40 | 100 | 150 | 200 | 300 |
纹波和噪声5) | P-p | mV | 200 | 300 | 350 | 800 | 1600 | 2400 |
r.m.s.7 | mV | 16 | 40 | 70 | 200 | 350 | 400 |
温度系数 | ppm/C | 100ppm/C from rated output voltage,following30minuteswarm-up |
远程补偿电压 | 5%of Vo_rated | V | 4 | 10 | 25 | 37.5 | 50 | 75 |
上升时间(3 | Rated load | ms | 30 | 30 | 30 | 30 | 30 | 30 |
No load | ms | 30 | 30 | 30 | 30 | 30 | 30 |
下降时间 | Rated load | ms | 80 | 80 | 80 | 80 | 80 | 80 |
No load | ms | 1000 | 1000 | 1000 | 1200 | 1000 | 1200 |
瞬态响应时间(1 | ms | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
定电流模式 |
电源调整率(“3)[0.05%of lo_rated]
负载调整率(1)0.1%of lo_rated] | mA | 85 | 35 | 15 | 10 | 7.5 | 5 |
mA | 170 | 70 | 30 | 20 | 15 | 10 |
纹波和噪声 | r.m.s.7 | mA | 170 | 50 | 16 | 16 | 8 | 8 |
温度系数 | ppm/℃ | 100ppm/C from rated output current,following30minuteswarm-up. |
保护功能 |
过电压保护(OVP) | Setting range | V | 5.00Vto88.00V | 5.00Vto220.00V | 5.00Vto550.00V | 5.0V to825.0V | 5.0V to1100.0V | 5.0V to1650.0V |
Setting accuracy | mV | 80 | 200 | 500 | 750 | 1000 | 1500 |
过电流保护(OCP) | Setting range | A | 5.00A to187.00A | 5.00A to77.00A | 3.000Ato33.000A | 2000Ato22.000A | 1.500A to16.500A | 1.000A to11.000A |
Setting accuracy | mA | 340 | 140 | 60 | 40 | 30 | 20 |
过功率保护(OPP) | Setting range | W | 100W to5500W | 100W to5500W | 100W to5500W | 100W to5500W | 100W to5500W | 100W to5500W |
Setting accuracy | W | 50 | 50 | 50 | 50 | 50 | 50 |
超电压限制(OVL)
低电压限制(UVL)
超电流限制(OCL)
低电流限制(UCL)
电源装置故障(PUF)
侦测线路连接不当保护(SENSE)
低AC输入保护(AC-FAIL)
关闭(SD)
功率限制(POWER LIMIT) | Setting range | V | 0.00Vto84.00V | 0.00Vto210.00V | 0.00Vto525.00V | 0.0Vto787.5V | 0.0V to1050.0V | 0.0V to1575.0V |
Setting range | V | 0.00Vto84.00V | 0.00Vto210.00V | 0.00Vto525.00V | 0.0V to787.5V | 0.0V to1050.0V | 0.0V to1575.0V |
Setting range | A | 0.00Ato178.50A | 0.00Ato73.50A | 0.000Ato31.500A | 0.000Ato21.000A | 0.000Ato15.750A | 0.000Ato10.500A |
Setting range | A | 0.00Ato178.50A | 0.00Ato73.50A | 0.000Ato31.500A | 0.000Ato21.000A | 0.000Ato15.750A | 0.000Ato10.500A |
Operation |
| Turn the output off. |
Operation |
| Turn the output off. |
Operation |
| Turn the output off. |
Operation |
| Turn the output off. |
Operation |
| Over power limit. |
Value (fixed) |
| Approx.102%of rated output power |
其他功能 |
电压斜率 | Setting range | V/s | 0.01to160.00 | 0.01to 400.00 | 0.1to1000.0 | 0.1to1500.0 | 0.1to2000.0 | 0.1to3000.0 |
Resolution | mV | 10 | 10 | 100 | 100 | 100 | 100 |
电流斜率 | Setting range | A/s | 0.01to340.00 | 0.01to140.00 | 0.001to60.000 | 0.001to 40.000 | 0.001to30.000 | 0.001to20.000 |
Resolution | mA | 10 | 10 | 1 | 1 | 1 | 1 |
内部电阻 | Setting range | Ω | 0.000to0.471 | 0.000to2.857 | 0.00to16.67 | 0.00to37.50 | 0. 0to66.7 | 0. 0to150.0 |
Resolution | mΩ | 1 | 1 | 10 | 10 | 100 | 100 |

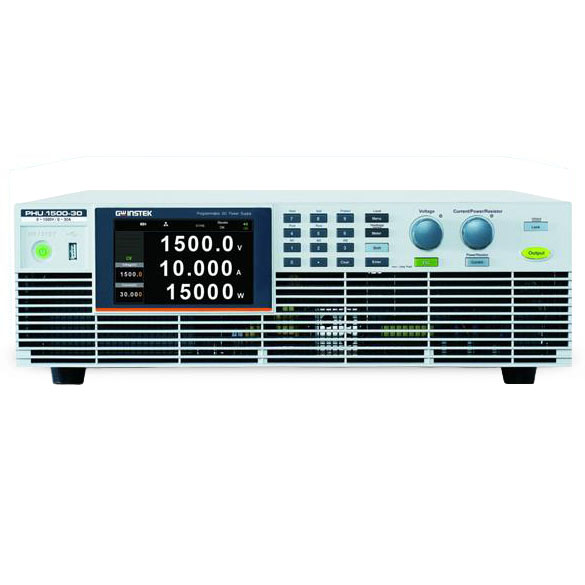

前面板 |
显示 | TFT-LCD,5″800ptx480pt |
电压精度[0.1%of Vo_rated]
电流精度[0.2%of lo_rated]
功率精度[1%of Po_rated]
电压分辨率
电流分辨率
功率分辨率 | mV | 80 | 200 | 500 | 750 | 1000 | 1500 |
mA | 340 | 140 | 60 | 40 | 30 | 20 |
W | 50 | 50 | 50 | 50 | 50 | 50 |
V | 0.01 | 0.01 | 0.01 | 0.1 | 0.1 | 0.1 |
A | 0.01 | 0.01 | 0.001 | 0.001 | 0.001 | 0.001 |
W | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
按钮
旋钮
USB port | Menu,Local,Exit,Clear,Enter,Lock,Crrent,Shift Output,Numeric Keypad |
Turn the knob to increase or decrease the value |
Type A USB connector |
编程和测量(数字接口) |
输出电压编程范围
输出电流编程范围
输出功率编程范围 | 0%to105% | V | O to84 | O to210 | 0to525 | 0to787.5 | O to1050 | O to1575 |
0%to105% | A | 0to178.5 | 0to73.5 | 0to31.5 | 0to21 | 0to15.75 | 0to10.5 |
0%to102% | W | 0to5100 | 0to5100 | 0to5100 | 0to5100 | 0to5100 | 0to5100 |
型号 | PHU | 80-170 | 200-70 | 500-30 | 750-20 | 1000-15 | 1500-10 |
输出电压测量分辨率
输出电流测量分辨率
输出功率测量分辨率 | mV | 10 | 10 | 10 | 100 | 100 | 100 |
mA | 10 | 10 | 1 | 1 | 1 | 1 |
W | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
输入特性(PHU-C) |
标称输入额定值
输入频率范围 | Single Phase,3-Phase,200V models:180Vac to265Vac(Covers200Vac/230Vac) |
47Hzto63Hz |
最大输入电流 | 200Vac | A | 32A(L1,L2) |
浪涌电流 | 200Vac | A | Lessthan50A |
最大输入功率 | VA | 6000 |
功率因数 | RatedPower |
| >0.95 |
效率(14 | 200Vac | % | 86to94 |
Hold-up时间 | 10msor greater |
输入特性(PHU-D) |
标称输入额定值
输入频率范围 | 3-Phase,400V models:342Vac to528Vac(Covers380/400/415/440/460/480Vac) |
47Hzto63Hz |
最大输入电流 | 400Vac | A | 16A(L1,L2) |
浪涌电流 | 400Vac | A | Lessthan25A |
最大输入功率 | VA | 6000 |
功率因数 | Rated Power |
| >0.95 |
效率14) | 400Vac | % | 87to94 |
Hold-up时间 | 10msor greater |

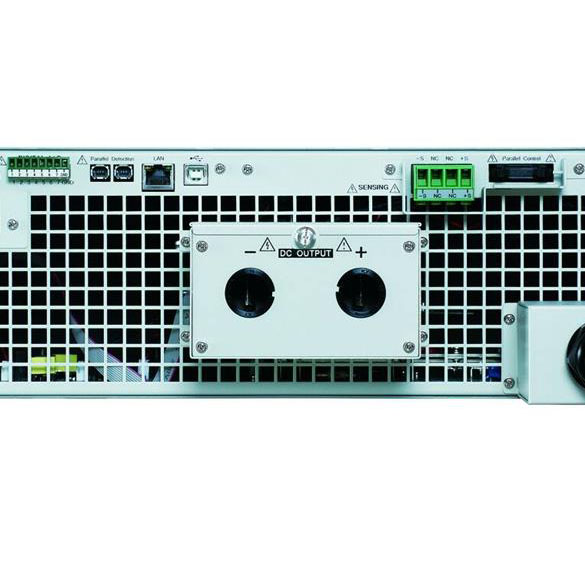

接口功能 |
一般规格 |
重量 | main unit only | kg | Lessthan21kg |
尺寸(W×H×D)mm | 442mm×130mm×675mm |
